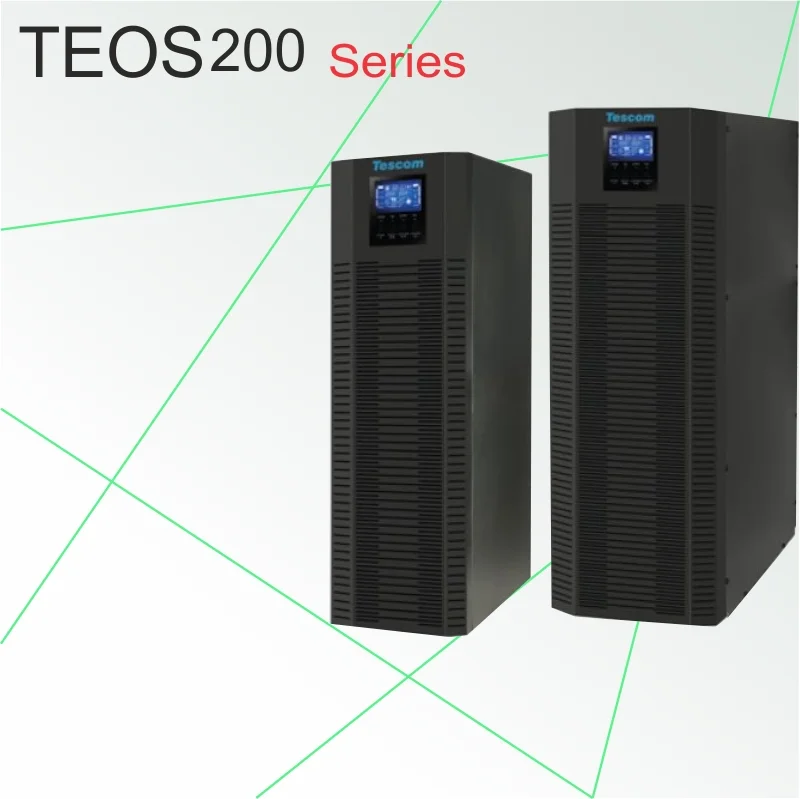

TEOS200

3Phase / 1 Phase On-Line UPS

General Specifications

Technical specifications

Frequency
in.;46-54Hz - out.;50Hz±0,1%
Voltage Range
190-520VAC (3-Phase) @ 50% load, 305-520VAC (3-Phase) @ 100% load
Output voltage accuracy
208/220/230/240VAC±1%
THDv
<%2 (Lineer load), ≤ %5(Nonlineer load)
Peak Coeff.
(Crest Factor) 3:1
Online
Up to 92%
Technology
Online-double conversion, PFC
Control
Microprocessor DSPIC, SPWM
Communication
SNMP(optional), RS485
Remote Monitor.
SNMPView, UPSilon, Remote Monitoring, panel(optional)
Dry Contact
Battery mod, Battery Low
Battery Start
(Cold Start) Standard
Relative humidity
% 0-95(without condensation)
Noise
< 45dB (A)

TEOS

200
Type
Rated power
Number of Batteries
Batteries Type
DATA SHEET DOWNLOAD
TESO200210
10kVA
16
12V-9Ah
TEOS200215
15kVA
20
12V-9Ah
TEOS200220
20kVA
16x2 strings
12V-9Ah
Type
Rated power
Number of Batteries
Batteries Type
DATA SHEET DOWNLOAD
XT200206
6kVA
20pcs- 270VDC
Sealed Lead Acid
XT200207
7,5kVA
20pcs- 270VDC
Sealed Lead Acid
XT200210
10kVA
20pcs- 270VDC
Sealed Lead Acid
XT200215
15kVA
30pcs- 270VDC
Sealed Lead Acid
XT200220
20kVA
30pcs- 405VDC
Sealed Lead Acid
XT200230
30kVA
30pcs- 405VDC
Sealed Lead Acid
XT200240
40kVA
30pcs- 405VDC
Sealed Lead Acid
